Osteology of the Skull

Introduction to Skull Bones

During mammalian development, the human brain relies on two distinct structural foundations. The skull base, which emerges primarily from cartilage, anchors the brain from below. Above it lies the protective vault or calvarium, a structure formed entirely through membranous ossification. The central skull base is a complex mosaic formed by the occipital, sphenoid, and temporal bones, beautifully completed anteriorly by the frontal and ethmoidal bones.

Cranial Sutures and Fontanelles

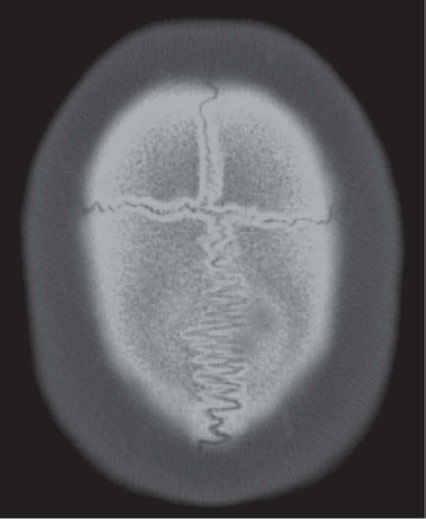

The intricate boundaries between the bones of the vault are known as cranial sutures (see Fig. 1.5). In a newborn, these membranous junctions are remarkably smooth to allow for rapid brain expansion. However, as the child grows, they develop complex, puzzle-like interdigitations. This is usually followed by perisutural sclerosis, a hardening process that typically culminates in complete bone fusion by the third or fourth decade of life.

Two critical developmental landmarks are the fontanelles. The vital anterior fontanelle, medically known as the bregma, sits at the crossroads of the sagittal and coronal sutures between the frontal and parietal bones. It famously remains open until the second year of life. In stark contrast, the posterior fontanelle (lambda) undergoes rapid closure, typically sealing by the second month postpartum.

The Skull Vault and Venous Drainage

Structurally, the skull vault is a remarkable biological sandwich consisting of dense inner and outer bone tables separated by a highly vascular, spongy layer known as the diploic space. This unique space harbors vital bone marrow alongside a vast network of large, valveless diploic veins. While these thin-walled vessels provide a brilliant anastomotic system for collateral venous drainage, they unfortunately also serve as a high-risk highway for the rapid spread of cranial infections.

Within the parietal bone—situated closely alongside the midline superior sagittal sinus—one can observe numerous venous lacunae. These spaces receive crucial returning cerebral blood and are deeply invaginated by arachnoid granulations. These granulations are essentially the biological filtration sites where cerebrospinal fluid (CSF) is constantly reabsorbed into the venous circulation. Because of their persistent physical pressure, they cause highly characteristic, localized thinning of the inner bone table. To an untrained eye on a CT scan (Fig. 1.6), these perfectly normal physiological impressions can easily mimic pathological erosive lesions.

The Frontal and Ethmoidal Bones

The prominent frontal bone actually begins its developmental journey as two entirely distinct halves. These halves typically fuse midway through early childhood, around five years of age. The temporary junction between them is called the metopic suture. Interestingly, in roughly 5 to 10% of the population, this fusion never completes, leaving the metopic suture visibly persistent well into adulthood (Fig. 1.5).

Internally, the orbital plates of the frontal bone form the vast majority of the delicate anterior fossa floor. At the exact midline, the cribriform plate of the ethmoid bone is boldly interposed. Ascending vertically into the cranial cavity from this cribriform plate is a distinctive bony ridge known as the crista galli, which serves as the critical anchor point for the falx cerebri. On modern T1-weighted MRI sequences, the crista galli frequently shines with a bright, hyperintense signal simply because it contains a core of fatty marrow.

The Parietal Bones and Pterion

The massive parietal bones form the bulk of the cranial vault. They are elegantly separated down the midline by the sagittal suture and articulate directly with the frontal bone anteriorly via the coronal suture (Fig. 1.5). Each parietal bone also shares highly complex articulations extending to the occipital bone posteriorly, the greater wing of the sphenoid anteriorly, and the temporal bone inferiorly.

Perhaps the most clinically vital landmark on the lateral skull is the pterion. This is the highly precise anatomical convergence point where the frontal, sphenoid, parietal, and temporal bones all meet. Physiologically, it completely closes at roughly 3 to 4 months of age. Surgically, it remains a critical waypoint due to its profound proximity to the middle meningeal artery.

The Sphenoid Bone

Acting as the majestic keystone of the central skull base, the sphenoid bone structurally mimics a wasp in flight. It features a central body flanked by both greater and lesser wings, with robust pterygoid plates descending inferiorly. The hollow body encloses the paired, and notoriously asymmetrical, sphenoid air sinuses. Looking at its superior aspect, one can clearly identify the pituitary fossa bounded posteriorly by the prominent dorsum sellae and the posterior clinoid processes.

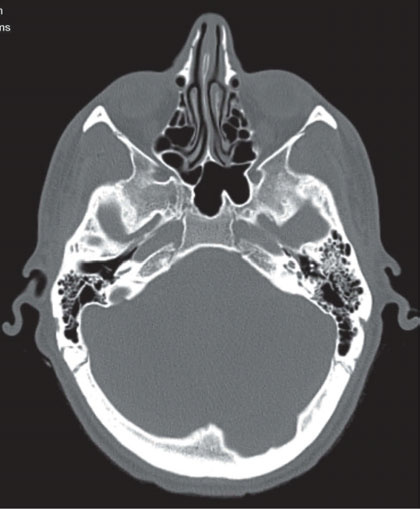

Anteriorly, the planum sphenoidale articulates perfectly with the cribriform plate of the ethmoid bone. Moving laterally, the anterior clinoid processes form the medial tips of the lesser wings, while the tuberculum sellae dips steeply down into the optic groove. Because the lesser wing constitutes the sharp posterior sphenoid ridge, it is a notoriously common site for the insidious development of skull base meningiomas (Fig. 1.7).

The greater wing is massive, sweeping outwards to form the expansive, gently sloping floor of the middle cranial fossa. It physically completely isolates the highly sensitive temporal lobe above from the deep infratemporal fossa below. Finally, its attached medial and lateral pterygoid plates plunge inferiorly directly behind the facial maxilla.

Cranial Foramina (Sphenoid & Associated)

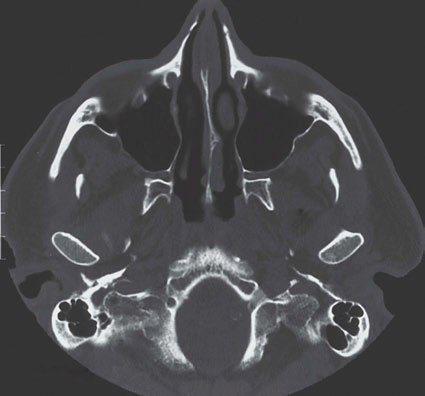

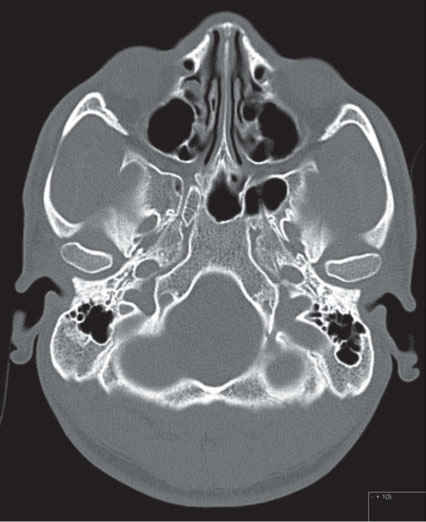

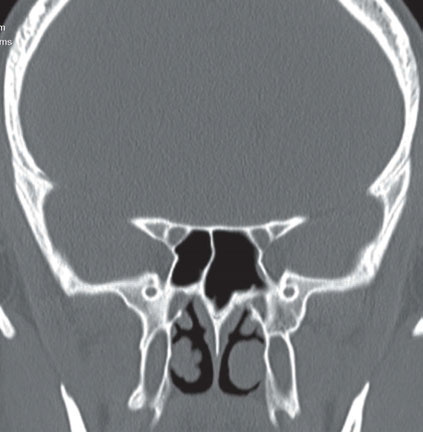

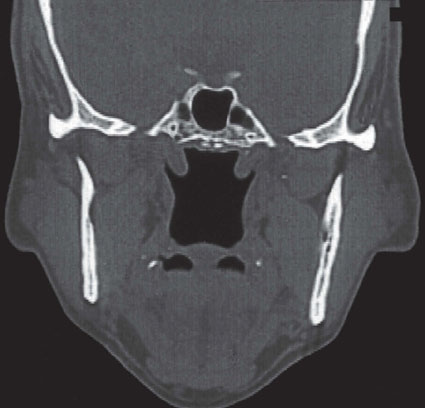

The mighty greater wing of the sphenoid bone is perforated by several clinically essential neurovascular transits (Fig. 1.8):

• Foramen Rotundum: This crucial canal courses efficiently from Meckel’s cave directly into the pterygopalatine fossa, famously transmitting the maxillary division of the powerful trigeminal nerve.
• Foramen Ovale: Running anterolaterally completely through the base, it safely transmits the mandibular division of the trigeminal nerve alongside accessory meningeal arteries. It forcefully emerges just near the lateral pterygoid plate.
• Foramen Spinosum: Located immediately posterolateral to the oval opening, this tight aperture transmits the critically indispensable middle meningeal artery and associated vein between the infratemporal region and the middle cranial fossa.

Additionally, one must be intimately familiar with several other notable adjacent skull base foramina:

• Foramen Lacerum: Interestingly, in a living human, this jagged opening is plugged primarily with dense cartilage, allowing passage for only highly localized, microscopic veins and nerves. It anatomically divides the petrous apex from both the sphenoid body and the basiocciput. Notably, the massive internal carotid artery merely slides horizontally across its superior margin rather than diving through it.
• Vidian (Pterygoid) Canal: A delicate passage located beautifully medial and slightly inferior to the foramen rotundum.
• Foramen of Vesalius: Known as the sphenoidal emissary foramen, it sits just medial to the foramen ovale, reliably transmitting an important connecting emissary vein.

The Temporal Bone

The temporal bone is a highly intricate structure composed of four architecturally distinct regions. The vertical, shell-like squamous part forms the lateral boundary of the middle cranial fossa and is separated cleanly from the parietal bone by the squamosal suture. It powerfully projects a sweeping zygomatic process (contributing to the facial zygomatic arch) and houses the mandibular condylar fossa.

Deep internally lies the dense, rock-like petromastoid portion, heavily contributing to the solid floors of both the middle and posterior cranial fossae. At the absolute base of this structure, the sharp styloid process plunges dramatically downwards into the neck spaces, intimately shadowed by the stylomastoid foramen, which safely guides the highly sensitive facial (VIIth) cranial nerve exactly into the parotid space.

The Occipital Bone & Clivus

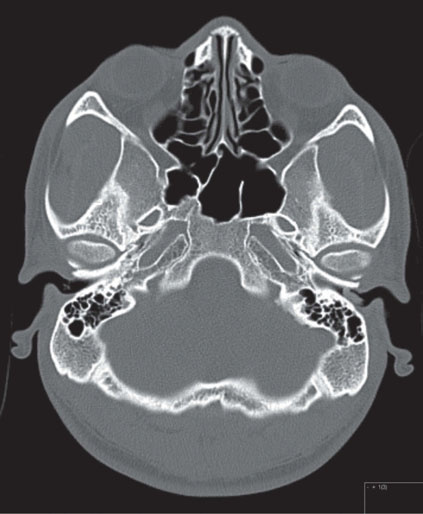

Providing the primary structural boundary for the voluminous posterior cranial fossa is the occipital bone. Not only does it house the enormous foramen magnum, but it also proudly bears the twin occipital condyles which articulate smoothly with the C1 atlas vertebra. Immediately adjacent lie the anterior condylar canals, specifically designed to transmit the powerful hypoglossal (XIIth) cranial nerve out of the skull (Fig. 1.9).

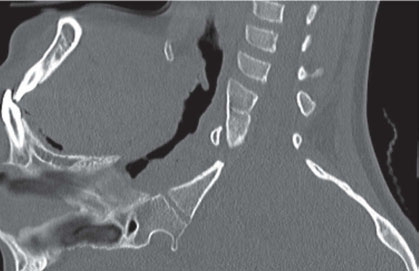

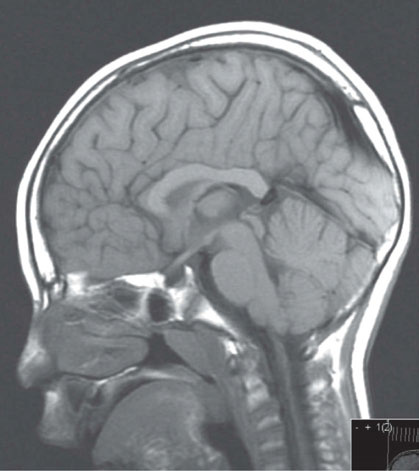

As the occipital bone sweeps anteriorly and inferiorly, it fuses gracefully with the posterior sphenoid to meticulously form the clivus. In young children, this exact cartilaginous joint remains beautifully visible on imaging as the basisphenoid synchondrosis (Fig. 1.10), before completely ossifying in adolescence.

A classic radiological diagnostic pearl lies entirely within the occipital bone: because its inferior portion completely lacks a spongy diploic space, it is classically unaffected and distinctly spared in thalassaemia major. While the rest of the calvarium typically exhibits a highly characteristic, aggressive "hair on end" expansion due to chronically reactive marrow, the lower occipital bone remains remarkably pristine.

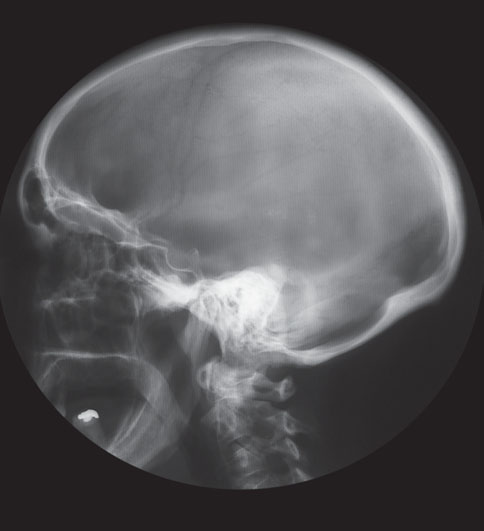

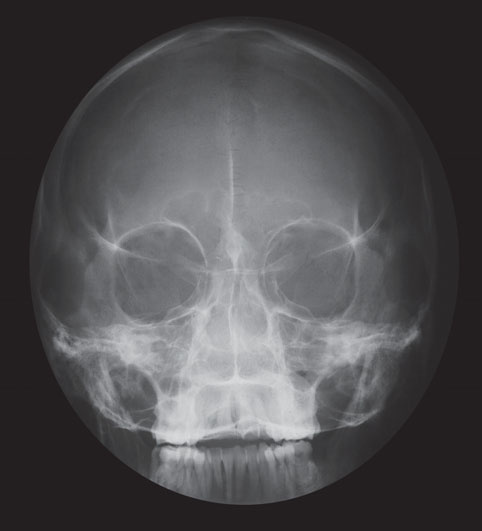

The Skull Radiograph

Historically considered the absolute gold standard for trauma, traditional plain-film skull radiography is performed significantly less frequently in modern practice due to the overwhelming diagnostic superiority of cranial CT mapping. Plain radiographic skull films remain intensely complex visual puzzles, cluttered with numerous overlapping opaque lines, complex anatomical interfaces, and generally offering extremely limited indirect evidence of internal cerebral pathology.

However, when specifically tasked with interpreting a plain skull radiograph, fundamentally distinguishing a normal physiological lucency from a genuinely traumatic true fracture line remains critically paramount. The undulating convolutional brain markings, for instance, are completely absent at birth, rapidly reach peak prominence between tightly 2 and 5 years of age, and typically fade into obscurity completely after age 12. Standard vascular demarcations, prominently featuring the sphenobregmatic sinus vein traversing precisely along the coronal suture line, will proudly persist throughout an individual's entire life course.
