The Cerebral Envelope

Introduction to the Meninges

The brain and spinal cord are masterfully invested and protected by three distinct layers cumulatively known as the meninges. Structurally, they are arranged precisely from outside inward: the robust, fibrous dura mater forms the outermost shield; the avascular, web-like arachnoid mater bridges the intermediate gap; and finally, the delicate, highly vascular pia mater is intimately adherent to every contour of the cerebral surface.

While the majestic dura and the delicate arachnoid layers are applied directly against one another under physiological conditions, pathological separation of these sheets creates a classically renowned "potential" gap known as the subdural space. Conversely, the critically important subarachnoid space—residing entirely between the arachnoid webbing and the pia—is a true physiological compartment completely bathed in cerebrospinal fluid (CSF), safely cushioning and transmitting the major cerebral arteries and bridging veins.

The Cranial Dura & Its Reflections

Routinely visualized on cross-sectional imaging, the cranial dura mater possesses two intimately fused layers: an outer endosteal layer (essentially the periosteum of the inner skull vault) and an inner meningeal layer. At very specific topological boundaries, these two layers dramatically separate from one another to enclose the expansive dural venous sinuses. Radiographically, the dura appears sharply hyperdense on unenhanced CT imaging and relatively hypointense on standard MRI sequences. Crucially, because it totally lacks a blood-brain barrier, normal dura mater actively demonstrates striking physiological contrast enhancement intensely on both imaging modalities.

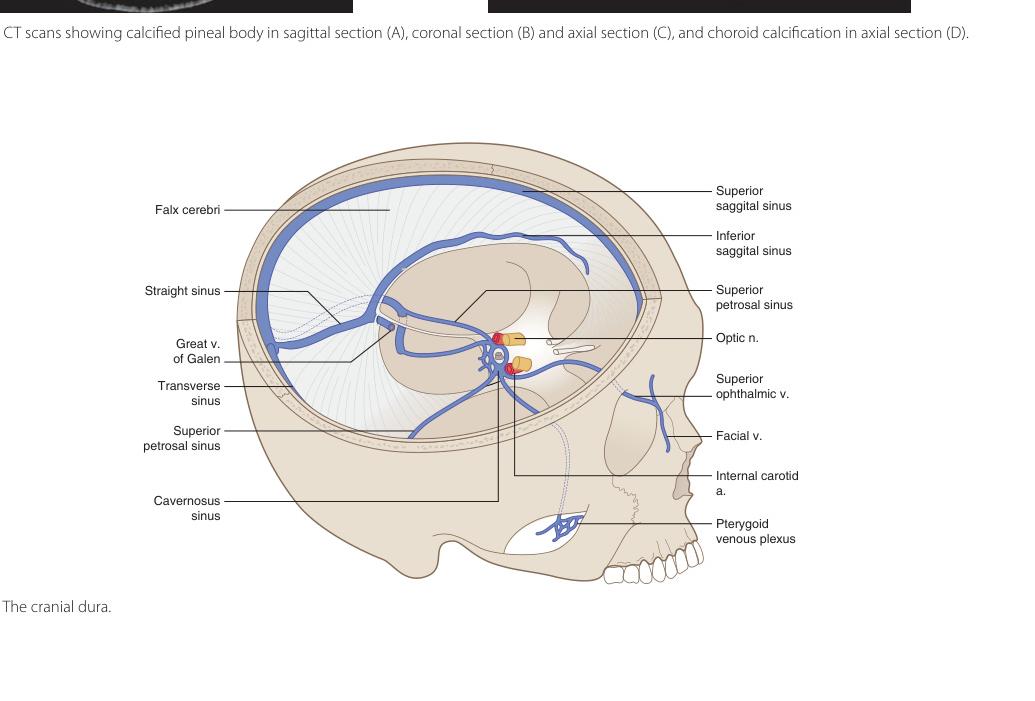

The inner, specifically meningeal layer boldly folds inward upon itself to rigidly compartmentalize the brain. The most prominent dural reflection is the falx cerebri. This rigid, sickle-shaped curtain plunges downward between the two cerebral hemispheres, firmly anchored anteriorly to the rigid crista galli and sweeping backwards to merge forcefully into the internal occipital protuberance. To an astute radiologist reading an axial CT scan near the vertex, it typically appears as a brilliant, perfectly straight midline density—though it classically assumes a triangular morphology posteriorly as the superior sagittal sinus progressively widens.

Another monumental fold is the tentorium cerebelli, an expansive, beautifully sloped tent-like canopy roof sheltering the posterior fossa. It securely attaches along the sharp crests of the petrous ridges completely back to the occipital boundaries. The central, arched opening through which the midbrain passes is critically referred to as the tentorial hiatus or incisura.

Diagnostic Compartmentalization

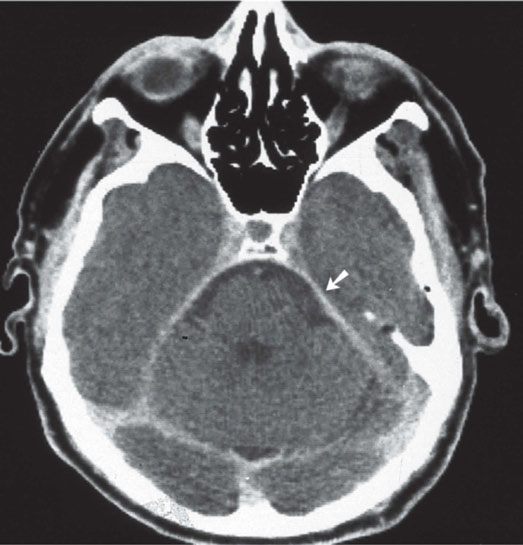

For precise diagnostic reporting and staging, it is universally mandatory for radiologists to explicitly identify in which exact intracranial compartment an underlying lesion resides. On classic axial CT datasets, anatomical structures sited functionally medial to the distinct line of the descending tentorial edge are formally classified as being trapped within the extremely confined infratentorial compartment (i.e., the posterior fossa housing the brainstem and cerebellum). Conversely, any tissue dynamically lying lateral or superior to the sweeping tentorial leaves belongs safely within the massive supratentorial compartment.
